Shenzhen advanced technology large unmanned plant protection machine, observation machine; Exclusive terrain tracking matching automatic driving system for your service! Contact wechat thai66001

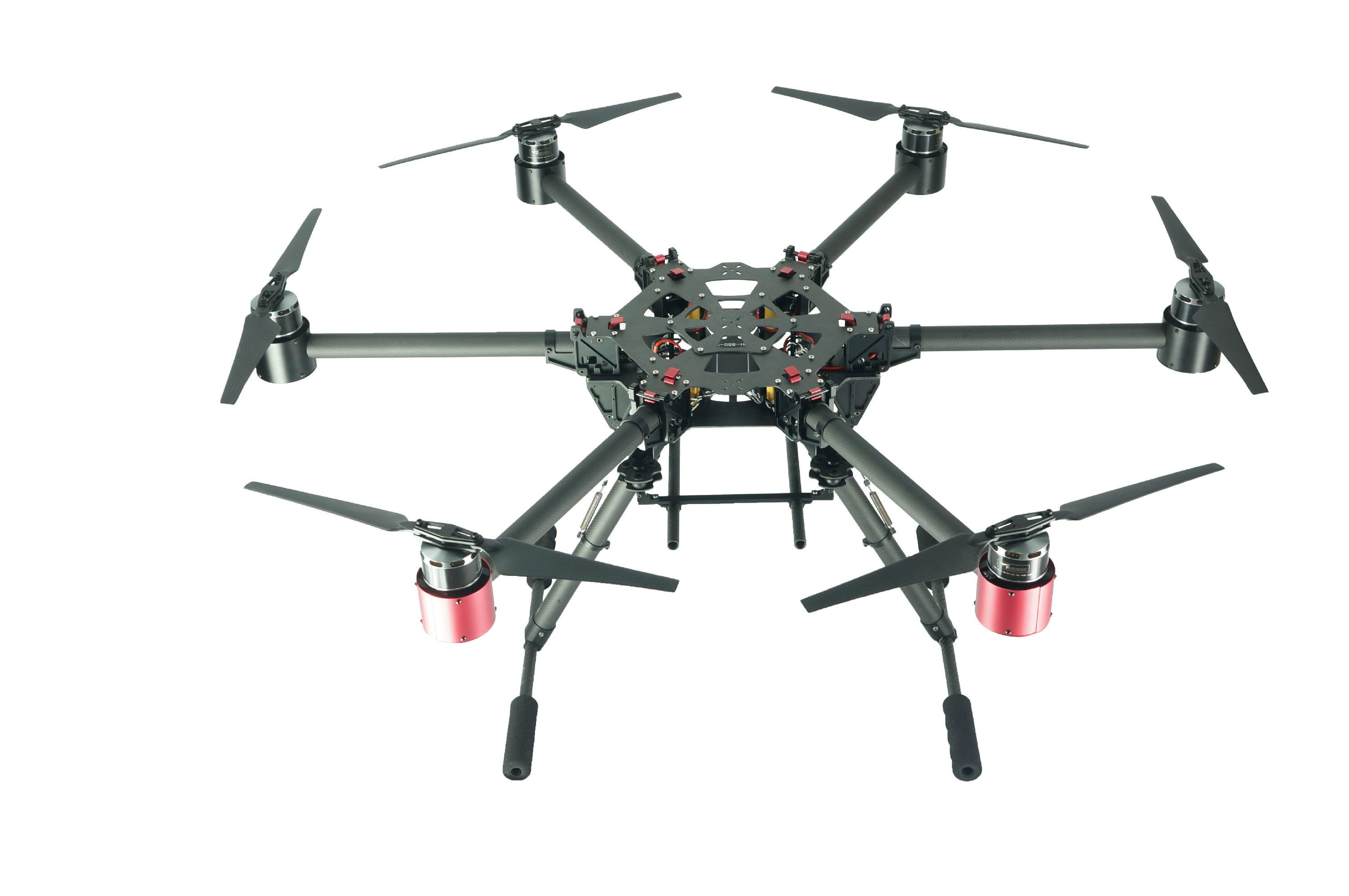

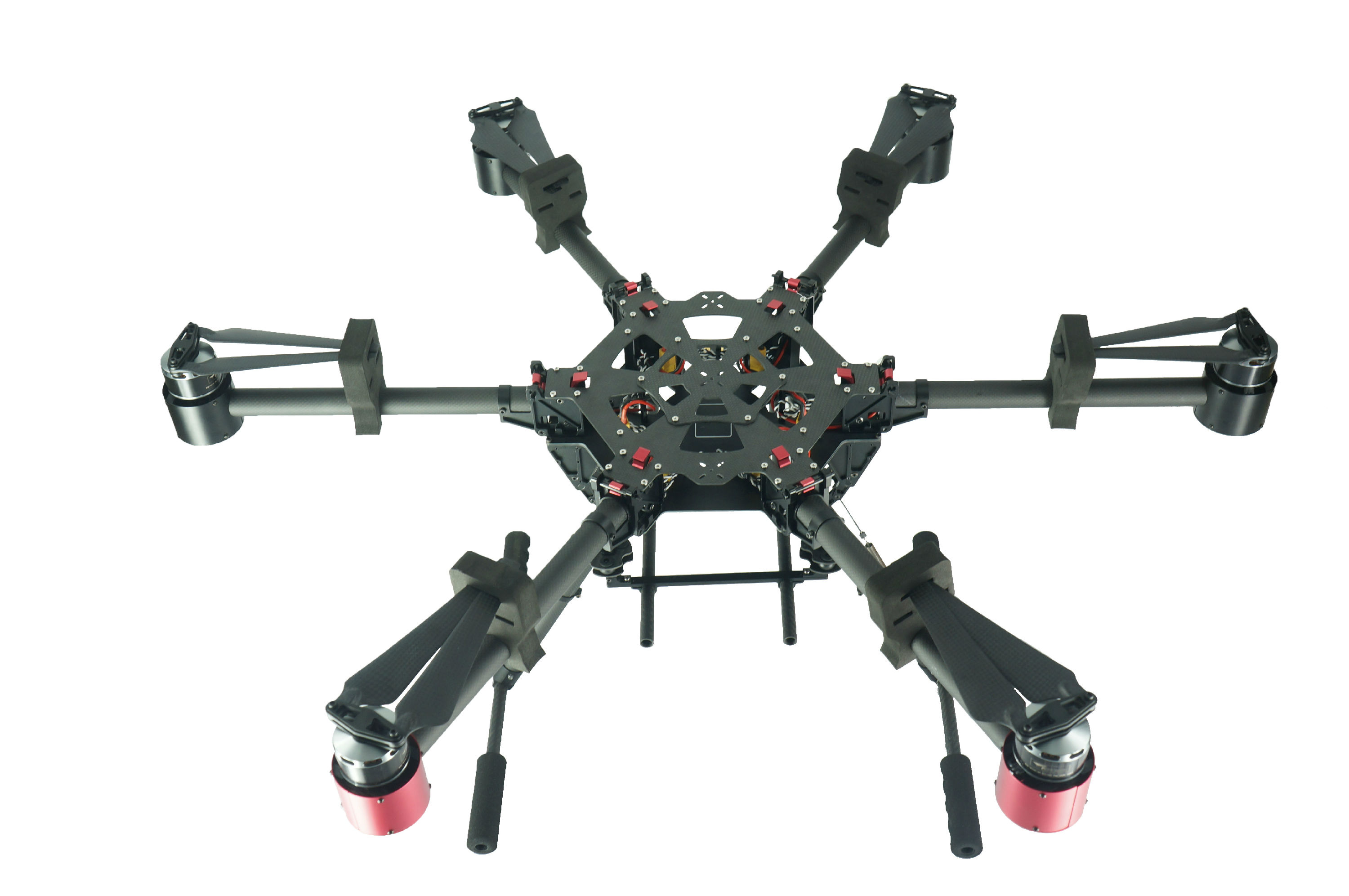

Explorer Series MultiRotor Helis MH850-V3
Overview :
Mh850-v3 is our new Multi-Rotor aircraft , inherits heavy loading and long-endurance flight from V1 and V2. Improved the folding structure of the arms , adding the automatic foldable landing gear. The MH850v3 was designed for high-end aerial photography application , it can be widely used in all kinds of unmanned aerial vehicle (UAV) in the field of application.
● V type design ● Professional Octocopter
● Safe And Stable ● New Cooling system
● Portable Easy To Use ● Retractable Landing Gear
● Landing Frame Arm Design ● Low Gimbal Mounting Position
Features :
It is be with high performance brushless motor designed for multi-axis aircraft , be with high efficient , low temperature , low noise and smooth rotation , low vibration; greatly improve the stability and security of the flight .
Airframe is made of using 3K carbon fiber plate , 3K carbon fiber volume tube and CNC aluminum parts , not only beautiful and has a lighter weight and higher strength. It is compatible with market mainstream high-end flight control, provide perfect mastering,and installation position of IMU, GPS module.

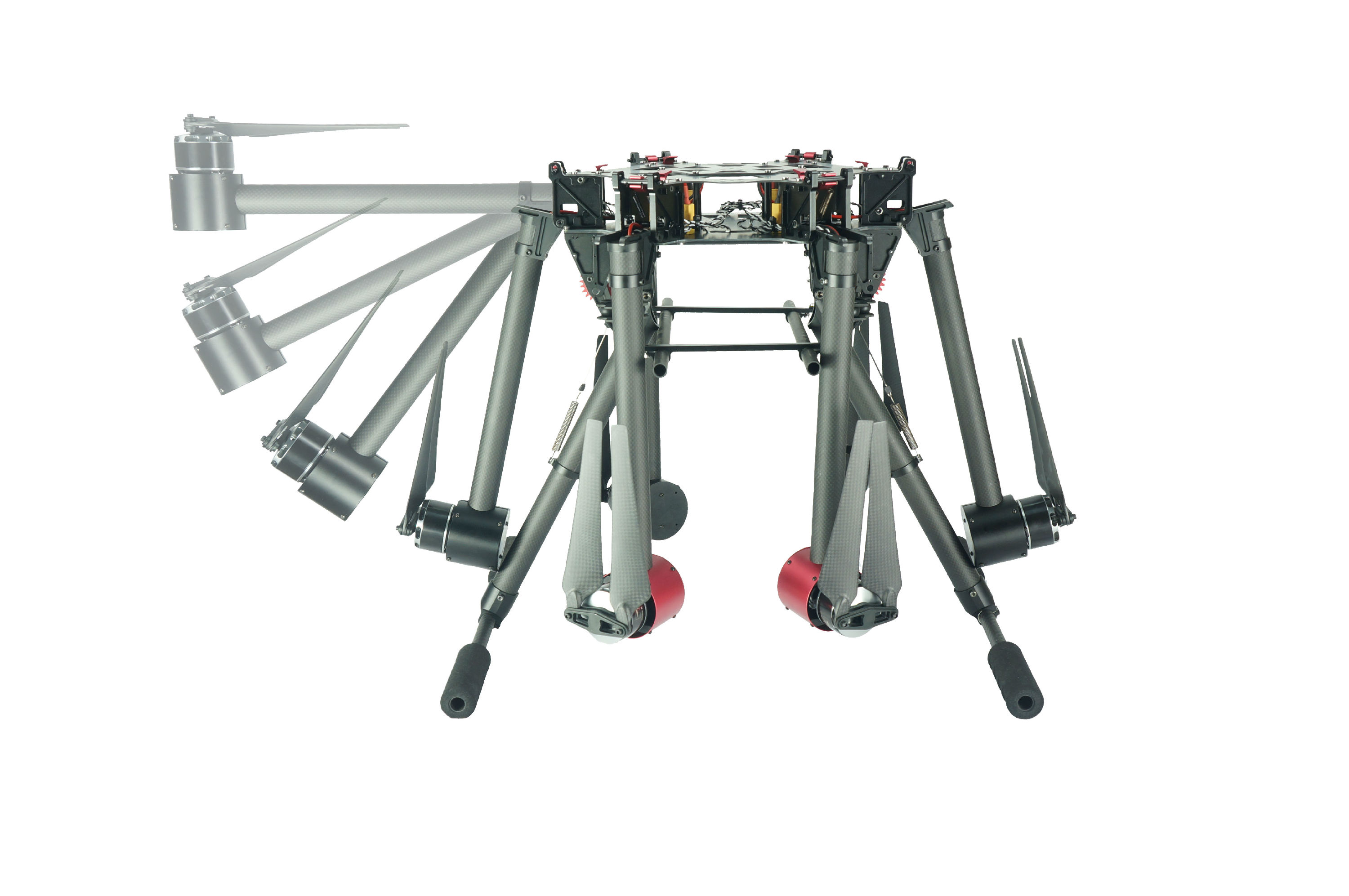

he newest style of folding rotor arm designing, easy to carry and using , smaller space, easy transportation. and before and after the flight preparation is simple and easy, by folding state expansion to flight state only need to 2 minutes Mounting. Gimbal Platform which designed for quick installation and Gimbal platform disassembling.
Technical Specifications Frame
Diagonal Wheelbase | 880mm |
Material
| Carbon Fiber,Aluminum alloy
|
Total Weight | 3.3Kg |
Flight Parameters
Takeoff Weight | 5.2Kg ~ 8.0Kg |
Load Weight | 0Kg ~ 3.5Kg |
Power Battery | LiPo (6S、10000mAh~15000mAh、15~50C) |
Max Power Consumption | 3000W |
Hover Power Consumption | 980W(@ Takeoff Weight 6.8Kg) |
Hover Time | Max: 15 min (@12000mAh&6.5Kg Takeoff Weight) |
Motor:
Stator Size | 41×14mm |
KV | 400 rpm/V |
Max Power | 500W |
Weight | 170g |
ESC
Working Current
| 40A-(OPTO) |
Working Voltage | 6S LiPo |
Weight | 35.2g |
Signal Frequency
| 30Hz~580Hz |
Propeller
Material | Carbon Fiber |
Size | 15×52in |
Weight | 15g |
以上为MH850大型 专业无人机
第二款：MH1100大型专业无人机
以上是 MH1100大型专业无人机
Explorer Series MultiRotor Helis MH1100
Overview :
Flycker-MH1100 is an Multi-Rotor aircraft which specifically designed for high-end aerial photography application , it is be with the heavy loading , long-endurance flight , flight stability , and simple maintenance , etc .It can be widely used in all kinds of unmanned aerial vehicle (uav) in the field of application.
● V type design ● Professional Octocopter
● Safe And Stable ● New Cooling system
● Portable Easy To Use ● Retractable Landing Gear
● Landing Frame Arm Design ● Low Gimbal Mounting Position
Features :
It is be with high performance brushless motor designed for multi-axis aircraft , be with high efficient , low temperature , low noise and smooth rotation , low vibration; greatly improve the stability and security of the flight .
Airframe is made of using 3K carbon fiber plate , 3K carbon fiber volume tube and CNC aluminum parts , not only beautiful and has a lighter weight and higher strength. It is compatible with market mainstream high-end flight control, provide perfect mastering,and installation position of IMU, GPS module.
The newest style of folding rotor arm designing, easy to carry and using , smaller space, easy transportation. and before and after the flight preparation is simple and easy, by folding state expansion to flight state only need to 2 minutes Mounting. Gimbal Platform which designed for quick installation and Gimbal platform disassembling.
Technical Specifications Frame
Diagonal Wheelbase | 1050mm |
Material
| Carbon Fiber,Aluminum alloy
|
Total Weight | 4.5Kg |
Flight Parameters
Takeoff Weight | 6.0Kg ~ 10Kg |
Load Weight | 0Kg ~ 6.0Kg |
Power Battery | LiPo (6S、10000mAh~15000mAh、15~50C) |
Max Power Consumption | 3800W |
Hover Power Consumption | 1650W(@ Takeoff Weight 9.7Kg) |
Hover Time | Max: 15 min (@15000mAh&9.5Kg Takeoff Weight) |
Motor:
Stator Size | 41×14mm |
KV | 400 rpm/V |
Max Power | 500W |
Weight | 170g |
ESC
Working Current
| 40A-(OPTO) |
Working Voltage | 6S LiPo |
Weight | 35.2g |
Signal Frequency
| 30Hz~580Hz |
Propeller
Material | Carbon Fiber |
Size | 15×52in |
Weight | 15g |
深圳尖端技术大型无人植保机，观测机；独家地形跟踪匹配自动驾驶系统，为您服务！联系胡宏秘书长微信：thai66001 添加请注明：真实姓名，单位或公司名，添加事由。否则不予通过。
